Polystyrene foam board, also known as foam board, EPS board is made up of containing volatile liquid foaming agent of polystyrene beads, after heating pretest thermoforming white object in the mould, it has fine obturator structure characteristics, mainly used for building wall, roof insulation, composite board heat preservation, cold storage, air conditioning, heat preservation and heat insulation of the vehicles, ships, floor heating, decoration carving purposes is very broad.
Light weight: 8-16 kg/m3
High strength，Heat insulation, sound insulation,moistureproof
The average coefficient of thermal conductivity: 0.032 kcal/m
High strength，Heat insulation, sound insulation,moistureproof
The average coefficient of thermal conductivity: 0.032 kcal/m
|

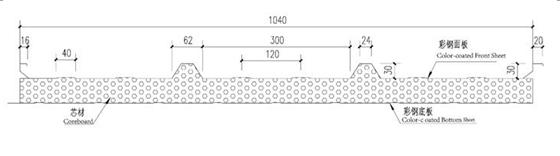

color steel sandwich panel |
texture |
relevant parameter |
|
panel |
color steel panel |
thickness 0.256-0.5mm |
|
baseboard |
color steel panel |
thickness 0.256-0.5mm |
|
plate width |
950mm-1150mm |
|
|
plate length |
clients can order acording to the trim size |
|
|
the thickness of the plate |
50mm-150mm |
|
|
insulation filler material |
foam |
unit weight 8-16kgm3 |
|
the connection method |
male female slot |
|
