Glass wool is with unique centrifugal technique, the molten glass fibrosis and thermosetting resins is given priority to environmental protection formula of binder for processed goods, is a kind of surface by only a few microns in diameter glass fiber, elastic fiber glass products. Because of glass wool color steel has a large number of small space, with thermal insulation, sound absorption, noise reduction and safety protection etc., building fire prevention is the best material to heat preservation and heat insulation, sound-absorbing noise reduction.
Glass wool sandwich panel has a good feature in noise reduction, specially suitable for the place where is high requirement in the sound-insulation. Via testing according to ISO717/82 and UNI18270/7 standards, selecting the rock wool which with the density 100kg/m3 and the thickness 50~100mm as the core, the sound coefficient will achieve RW=29-30dB.
|

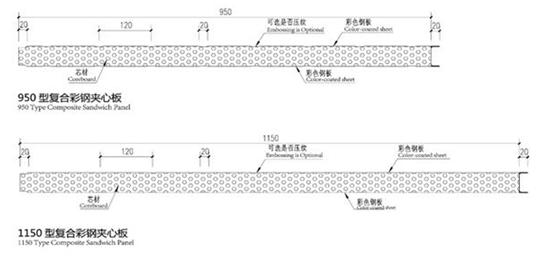

color steel sandwich panel |
texture |
relevant parameter |
|
panel |
color steel panel |
thickness 0.256-0.5mm |
|
baseboard |
color steel panel |
thickmess 0.256-0.5mm |
|
plate width |
950mm/1150mm |
|
|
plate length |
clients can order according to the tirm size |
|
|
the thickness of the plate |
50mm/150mm |
|
|
insulation filler material |
glass wool |
unit weight 40kg/m3 |
|
the connection method |
male female slot |
|
